Fujifilm ASPIRE Cristalle FDR MS-3500 Digital Mammography System with High-Resolution Images

Name: Fujifilm ASPIRE Cristalle FDR MS3500 Digital Mammography System with HighResolution Images
Brand: Fujifilm
Price: 1 USD

Brand Name : Fujifilm

Model Number : ASPIRE Cristalle

Certification : ce

Place of Origin : Japan

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C,T/T,Westen Union,Money Gram,Paypal/VTB

Supply Ability : 100000pc/month

Delivery Time : 10-15days

Packaging Details : Carton

Product name : Fujifilm ASPIRE Cristalle FDR MS-3500 Digital Mammography System

Basic imaging : Two-dimensional photographic image

Tomography : Three-dimensional tomography image

Advanced imaging : Two-dimensional synthetic image

Tomosynthesis Angles : ST Mode (±7.5°), HR Mode (±20°)

Detector : HCP flat-panel sensor (50μm pixel pitch)

Contact Now

Description:

The Fujifilm ASPIRE Cristalle FDR MS-3500 Digital Mammography System is a full-field digital mammography system designed for breast cancer screening and diagnostic imaging. Fujifilm ASPIRE Cristalle FDR MS-3500 Digital Mammography System combines high-resolution image quality with advanced functional capabilities to support early detection and precise clinical decision-making. Fujifilm ASPIRE Cristalle FDR MS-3500 Digital Mammography System is engineered to enhance workflow efficiency while prioritizing patient comfort during examinations.

Key Features and Advantages

1. High-Resolution Imaging with Low Dose

Utilizes Fujifilm’s proprietary HCP (Hexagonal Close Pattern) detector with 50μm resolution, achieving high detective quantum efficiency (DQE) for clear tissue contrast and microcalcification visibility .
Micro-dose technology optimizes radiation exposure while maintaining diagnostic accuracy, suitable for routine screening .

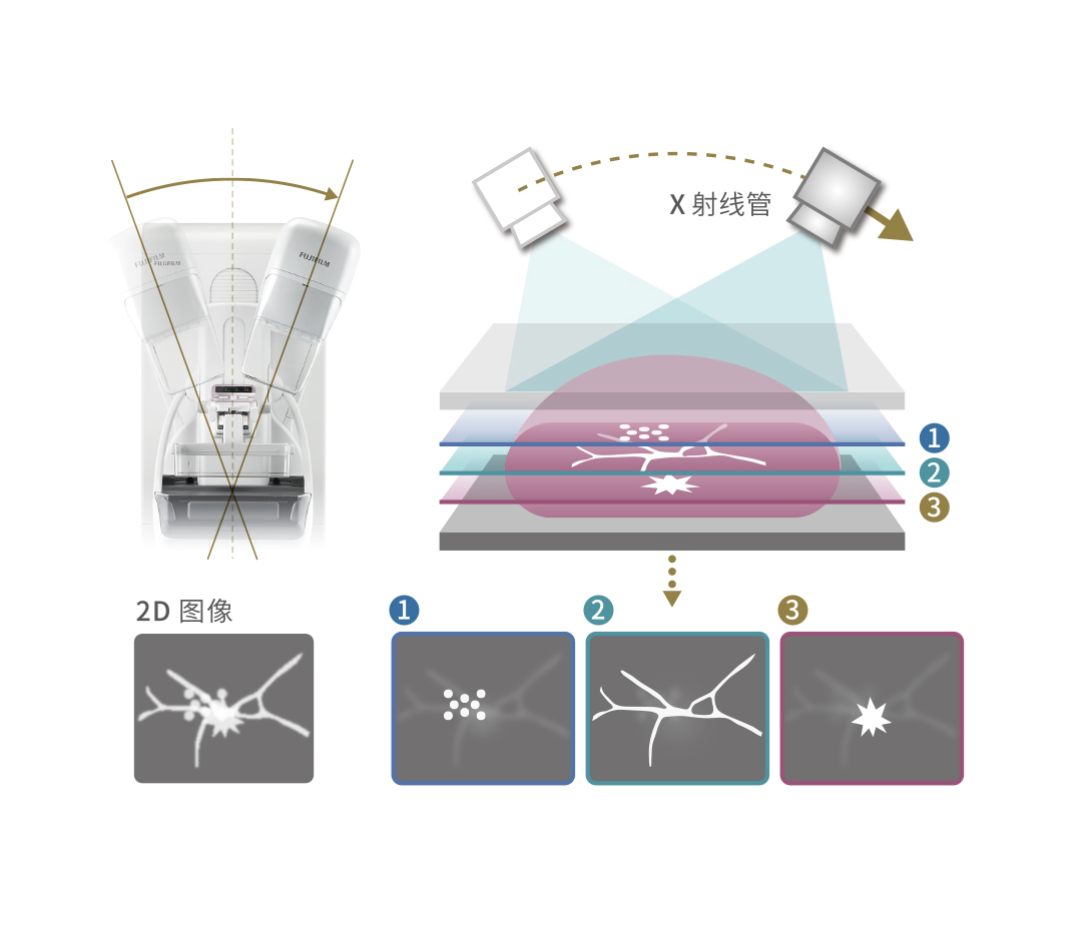

2. Dual-Mode Tomosynthesis

ST Mode (±7.5° scan angle): Balances speed and depth resolution for efficient screening .
HR Mode (±20° scan angle): Provides high-resolution layered views for detailed lesion characterization, enabling precise depth localization of abnormalities .
Tomosynthesis images are synthesized into 2D views, reducing the need for separate 2D exposures and minimizing overall radiation dose .

3. Advanced Clinical Functions

Tomo Biopsy System: Allows stereotactic biopsy guidance based on 2D or 3D images, improving accuracy for subtle lesions .
Automated Breast Density Measurement: Classifies breast tissue composition (e.g., fatty vs. dense) to support risk assessment and follow-up planning .

4. Patient-Centric Design

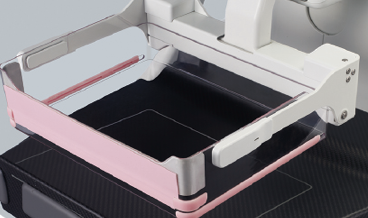

Multi-Dimensional Adaptive Compression Paddle: Adjusts pressure distribution for improved tissue spread and reduced discomfort .
Intelligent Comfort Compression: Automatically limits pressure based on breast density and patient profile, enhancing tolerance .

5. Operational Efficiency

Integrated automated image processing streamlines workflow from exposure to display .
Compatible with 3D/2D image fusion and optional biopsy modules, reducing procedure time .

Technical Specifications

Detector: HCP flat-panel sensor (50μm pixel pitch) .
Tomosynthesis Angles: ST Mode (±7.5°), HR Mode (±20°) .
Compression Paddles: Multiple sizes (e.g., 18×24 cm, 24×30 cm) with adaptive pressure control .
Regulatory Approval: NMPA Class III medical device.

Clinical Applications

Screening: High-throughput imaging for asymptomatic populations, especially women over 40 .
Diagnosis: Characterization of palpable lumps, architectural distortions, or microcalcifications.
Interventional Guidance: Tomo-guided biopsy for lesions poorly visible in conventional 2D images .

Comparative Advantages

Superior Detail Rendering: The HCP detector outperforms conventional amorphous selenium detectors in low-contrast scenarios .
Versatile Tomosynthesis: Dual-mode flexibility accommodates both rapid screening and detailed diagnostic needs .
Ergonomic Workflow: Automated compression and intuitive software reduce operator variability .

Note: Tomosynthesis and fused 2D/3D images are adjunctive tools and should be interpreted alongside full clinical context .

User Considerations

Ideal For: Hospitals, breast centers, and mobile screening units requiring high-volume, high-accuracy mammography.
Maintenance: Regular detector calibration and compression system checks are recommended for consistent performance.

The Fujifilm FDR MS-3500 exemplifies technological innovation aligned with clinical practicality, offering a reliable solution for modern breast imaging demands. Its integration of image quality, patient comfort, and workflow efficiency positions it as a valuable tool in the fight against breast cancer.
